Z640PLUS 3.0 PRINTER

Add to Wishlist
Categories: ,

Description

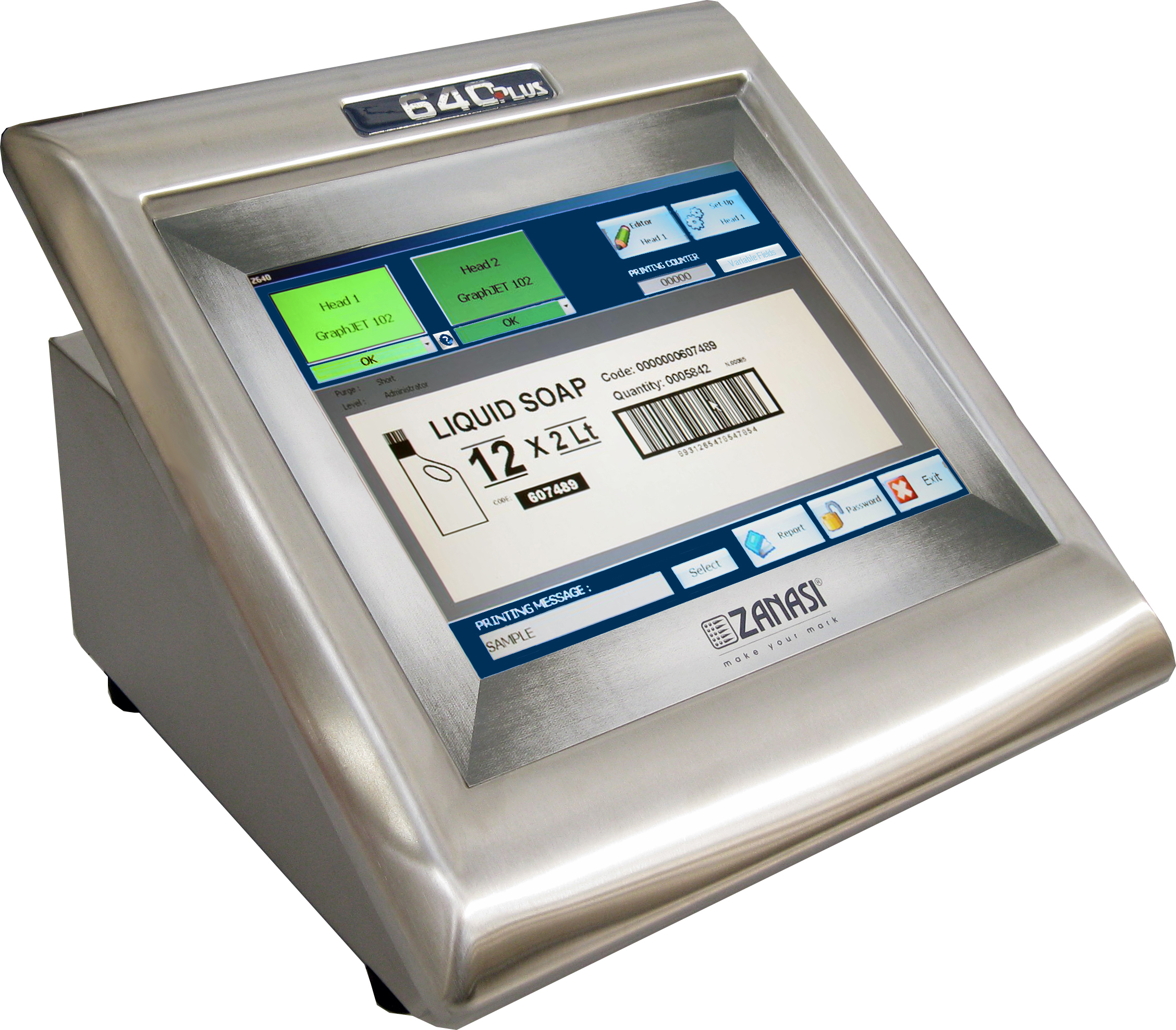

Z640Plus is the only industrial high resolution inkjet printer to feature a double printhead that allows for simultaneous and independent coding on porous substrates on two separate production lines. The printheads available are: T768 which can print up to 102mm high (4″) and T384 which can print up to 51mm high (2″). Z640Plus inkjet printers can print real time high quality alphanumerical texts, logos and other graphics onto secondary packaging. In addition, this high resolution inkjet printer can print major barcodes and standard variable data with high contrast patented inks (solvent free). The Z640Plus industrial high resolution inkjet printer is optimal for printing on porous substrates. The Z640Plus, equipped with an industrial PC (Windows 7 Embedded), features a fast and reactive user interface with a 12.1″ SVGA full color touch-screen panel and a 64 GB SATA Hard Disk SSD (Solid State Disk).



Photo Gallery:







Please follow and like us:

Technical Specifications



PRINTING FEATURES

  • Drives simultaneously up to 2 printheads either 102mm (4”) type (T768) or 51mm (2”) type (T384)
  • Line speed capability: up to 90 mt/min (295 ft/min)
  • Available fonts: all Windows True Type
  • Bold factor: up to 6 times
  • High quality graphic images printing
  • Message storage: up to 50GB
  • Automatic date, time, off sets and expiry date multifunctions
  • Incrementing/decreasing alphanumeric product counters up to 9 digits
  • Repeat print – message function
  • Field orientation: 0°, 90°, 180°, 270°
  • Fixed and variable text field types (automatic or external)



BAR CODES

GS1 128 • Code 128 • ITF • EAN 8 • EAN 13 • UPC A • Code 39 • 2/5 Industrial • 2/5 Interleaved • CodaBar • PDF 417 • DataBar • Data Matrix • QR • All the bar codes can be made in static or dynamic form



CONSTRUCTION CHARACTERISTICS

  • Stainless Steel structure AISI 304 – IP54 rating
  • Printing head – console distance: up to 5 mt (16,4 ft)



GENERAL FEATURES

  • Easy message creation with enhanced and powerful programming software
  • Simplifi ed images and texts formatting with Stretch and Drag&Drop functions
  • Fast and reactive user interface with a 12.1” SVGA full colour touch-screen panel
  • Print parameters stored within each message
  • Report function for executed printing counter, verifi able via ethernet
  • Auto real-time printing cost calculation
  • Operator Multi – Level password access with Screen Lock protection
  • Communication to management programs and software
  • Operator interface and operating system with extended foreign languages and
  • alphabets (Arabic, Chinese, Cyrillic…)
  • Windows 7 Embedded operative system
  • 64 GB SATA Hard Disk SSD (Solid State Disk)
  • Fanless native 1GHz microprocessor with 1GB RAM storage



PRINTHEAD

  • Stainless steel structure AISI 304
  • Industrial Piezoelectric technology
  • Horizontal resolution up to 300 Dpi
  • Vertical resolution 192 Dpi
  • Stainless steel AISI 316 single orifi ce plate
  • Serviceable and replaceable nozzle group
  • Sideward (0° and 90°) and upward printing with integrated or remote printhead
  • High contrast pigmented inks
  • Rapid dry and high adhesion inks for non-porous surfaces
  • Integrated robust shock and vibration proof system
  • Innovative purge system (Automatic Maintenance Purge ModuleTM)
  • Exclusive flushing system with solvent
  • Innovative ink and printhead heater system
  • Dual ink feed improves flow rates for high printing speed
  • and smooth ink delivery
  • Ink tank 5 gallons (optional)
  • Dimensions printhead T768: 215mm x 60mm x 150mm (8,5” x 2,4” x 5,9”)
  • Dimensions printhead T384: 175mm x 50mm x 100mm (6,9” x 2,0” x 3,9”)



EXTERNAL CONNECTIONS

  • Scanner connection for printed bar code validation
  • Ethernet interface for LAN connection 10/100/1000 Mbit
  • Wi-Fi and Bluetooth connection (optional)
  • Optical sensor for product detection
  • Parallel interface BCD
  • Shaft encoder input for variable speed production lines
  • External alarm outputs with traffi c light column
  • Remote service via internet
  • L@ncode® software for remote management
  • System Ready output
  • N°2 USB port version 2.0
  • N°2 Serial port RS232



ENVIRONMENT/ELECTRICAL REQUIREMENTS

  • Temperature: from 5° to 45°C (40°-113°F)
  • Humidity: 0 – 90% (non-condensing)
  • Single Phase, 80-240Vac, 50-60Hz, 100VA
