Description

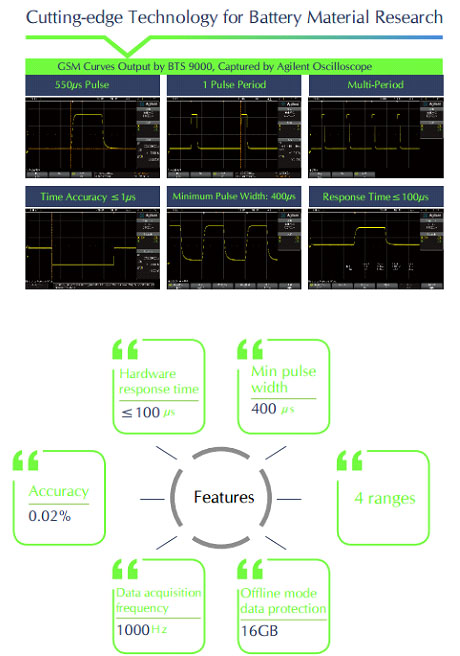

BTS9000 is designed for battery material research, high-precision tests, pulse charge/ discharge tests, DCIR test, and cycle life test which possesses ultra-high accuracy(±0.02% of FS), amazing hardware response speed(≤100μs), high-speed testing data acquisition and many other industry-proven characteristics. Comes to the pulse tests, BTS9000 supports GSM(Global System for Mobile Communications), GPRS(General Packet Radio Service), CDMA-standby, CDMA-talk(Code Division Multiple Access), IDEN(Integrated Digital Enhanced Networks), etc. It is characterized with a data acquisition frequency up to 1000 Hz, an accuracy of 0.02% FS and a minimum pulse width of 400 μs (microsecond) which can be utilized for GSM or some other rapid pulse tests.
1. Features and Functions
o Extremely high accuracy (±0.02% of FS)
o Hardware Response Time: ≤100μs
o Min pulse width: 400μs
o Applicable to cells, batteries, super-capacitors and battery modules, etc.
o Wide range of applications (grading, over charging/discharging, ladder-type charge/discharge, pulse)
o DCIR, HPPC and GSM Pulse tests supported
o 4 channels parallel mode may be available
o Multi-current range available(4 ranges per channel)
o Every channel can perform CCC(Constant Current Charging), CVC(Constant Voltage Charging), CC&CVC(Constant Current & Constant Voltage Charging), CPC (Constant Power Charging), CCD(Constant Current Discharging), CPD (Constant Power Discharging), Pulse, DCIR, etc.
o Completely independent channels allow users to run multiple independent tests simultaneously without affecting other channels.
2. Hardware Specifications
o Input Power: AC 220V ±10% 50Hz
o VoltageOutputRange: 0 – 5V
o Resolution: AD(16bit); DA(16bit)
o Control Accuracy: ±0.02% of FS
o Measuring Accuracy: ±0.02% of FS
o Hardware Response Time: ≤100μs (10%-90% Current)
o Data recording rate: up to 1000Hz, △T/△U/△I
o Operating modes: Charge – CC(Constant Current),CV(Constant Voltage), CC&CV ( Constant Current & Constant Voltage), CP(Constant Power), Pulse; Discharge- CC(Constant Current), CV(Constant Voltage), CR(Constant Resistance), CP(Constant Power), Pulse
o Minimum pulse width: 400μs
o Multi-range: Each channel supports 4 ranges
