Description
1. Features and Functions
- Industry leading accuracy up to ±0.05% FS
- pulse test, HPPC test and DCIR supported
- 4 channels paralleled available
- Multi-current range available(4 ranges per channel)
- Single channel data acquisition frequency up to 100Hz
- Rising and falling time ≤20ms
- Auxiliary voltage and temperature channels available
- Wide range of applications (cycle, grading, over charging/discharging, pulse)
- Functions of CCC(Constant Current Charging), CVC(Constant Voltage Charging), CC&CVC(Constant Current & Constant Voltage Charging), CPC(Constant Power Charging), CCD(Constant Current Discharging), CPD(Constant Power Discharging), CRD(Constant Resistance Discharging), Pulse, etc.
- Adaptable to a wide range of products (cells, batteries, super-capacitors and battery modules, etc.)
- Completely independent channels allow users to run multiple independent tests simultaneously without affecting other channels
- Work without computer mode, up to 1GB testing data storage capacity

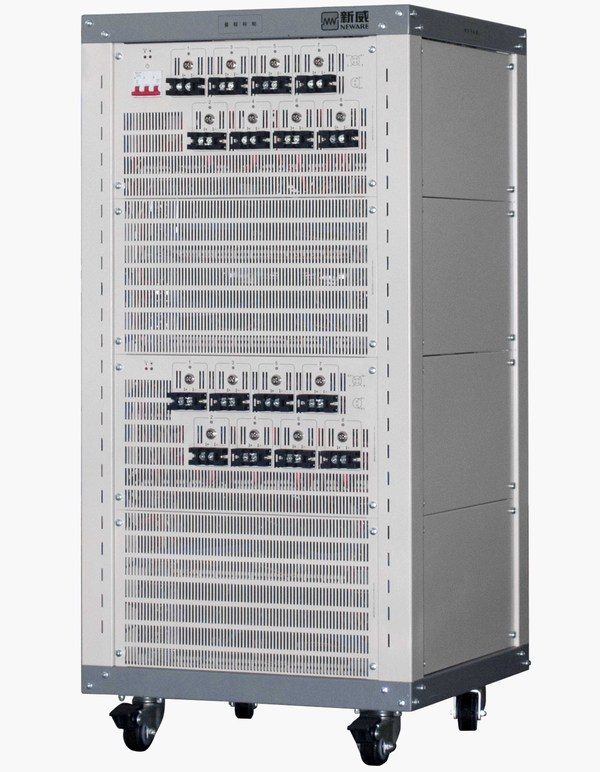

- BTS4000 can be configured with multi-current range channels, which have a current control range of 0A to 3000A. These multi-current range channels can be configured for voltage ranges of 0V to 110V. The accuracy for current and voltage on these channels is ± 0.05% FS.
- The highest power of BTS4000 can be up to: 5V3000Aor 60V500Aor 110V180A Typical high power model of BTS4000 could be: 60V20A-4CH, 60V40A-2CH, 60V60A-2CH, 60V100A-4CH, 60V200A-1CH, 60V300A-1CH, 60V500-1CH, 110V100A-1CH, 110V180A-1CH.
2. Other applications
Our equipments could also be applied for super capacitor or EDLC (Electronic Double Layer Capacitor) tests. Through our advanced software, the capacitance, DCIR(Direct Current Internal Resistance) and LC(Leakage Current) could be easily calculated.
