Description
Furnace
Box type electric lab muffle furnace is adopted high quality heating element; With dual shell structure and intelligent auto-control temperature system, SCR control, phase shifting trigger. Equipped with intelligent cooling System between the dual shell, when the surface temperature reach to 50℃, the cooling fun will be start working automatically, so it can ensure the surface temperature is low; Using constant current soft-start control, to extend the life of heating elements.
Main function & Features:
Furnace chamber adopted high quality alumina polycrystalline fiber, which used Japanese technology (vac-sorb forming alumina polycrystalline fiber) with good insulation and durability properties, high tensile strength and no miscellaneous ball; So this furnace much more energy saving than the furnace use common fiber materials.
The temperature control system uses artificial intelligence technology, with PID control, self-tuning function
Temperature control accuracy: ±1℃
Heating rate: Recommend 10℃/min, Max. 30℃/min
- Side open type furnace door, open the door power will be cut off automatically.
- Three heating sides, thermal field more uniformity.
- Reserved 485 convert interface, can be connected with PC through software. It has remote control, real time tracking, history recorder, and output report function.
- Over temperature will alarm and cut off power supply automatically, also with leakage protect function, operation more safety.
Main applications:
Universities, research institutes, industrial and mining enterprises to do the powder sintering , sintering of ceramics, high temperature experiments, material handling, quality inspection purposes.
| Model | Chamber size
(D*W*H, mm) |
Rated
power |
Heating
element |
Thermocouple | Working
Temperature |
Max.
Temperature |
Program
Segments |
| RGB1100 | 100*100*100 | 1KW | Cr-Al-Mo
Alloy wire |
N type | 1000℃ | 1050℃ | 30 |

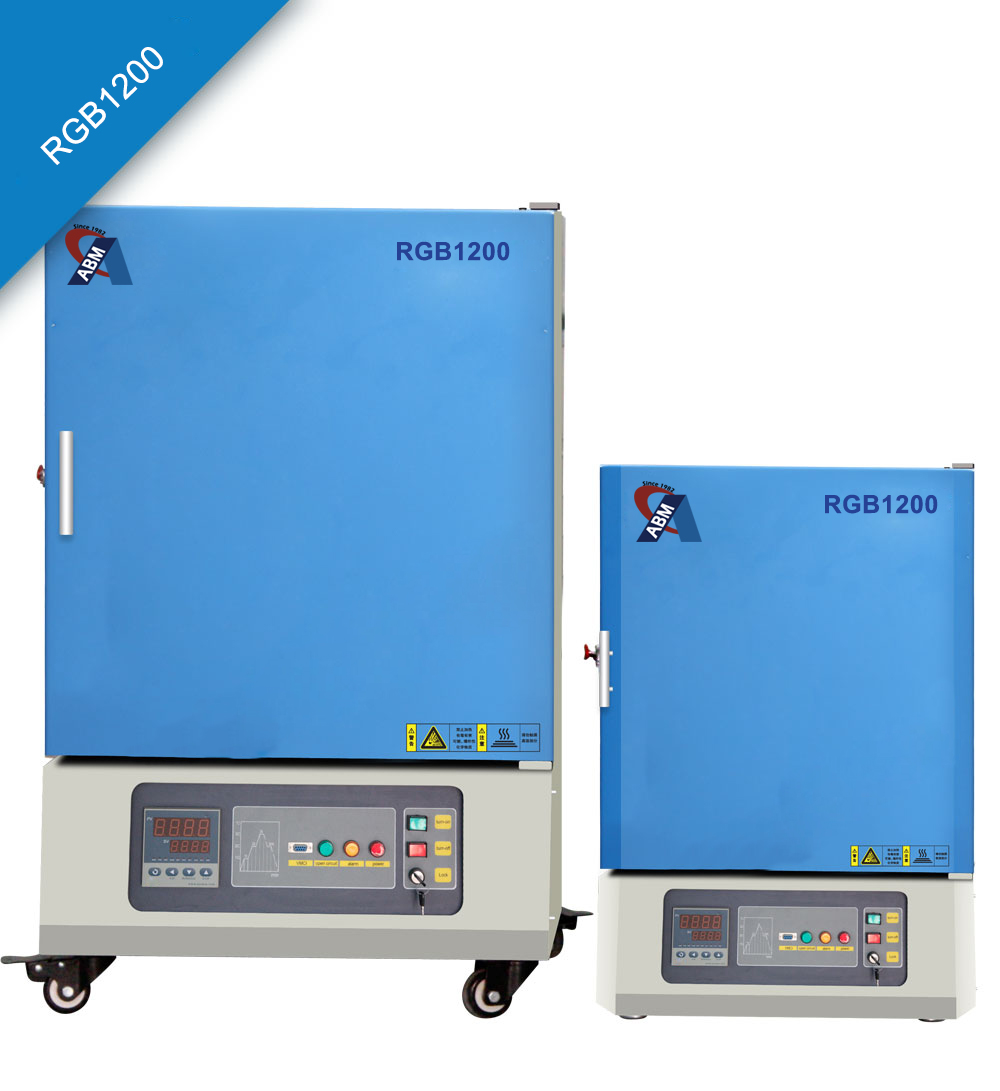

| RGB1200 | 160*150*150 | 3KW | N type | 1100℃ | 1150℃ | ||
| RGB1200 | 300*200*200 | 4KW | |||||
| 400*300*300 | 8KW | ||||||

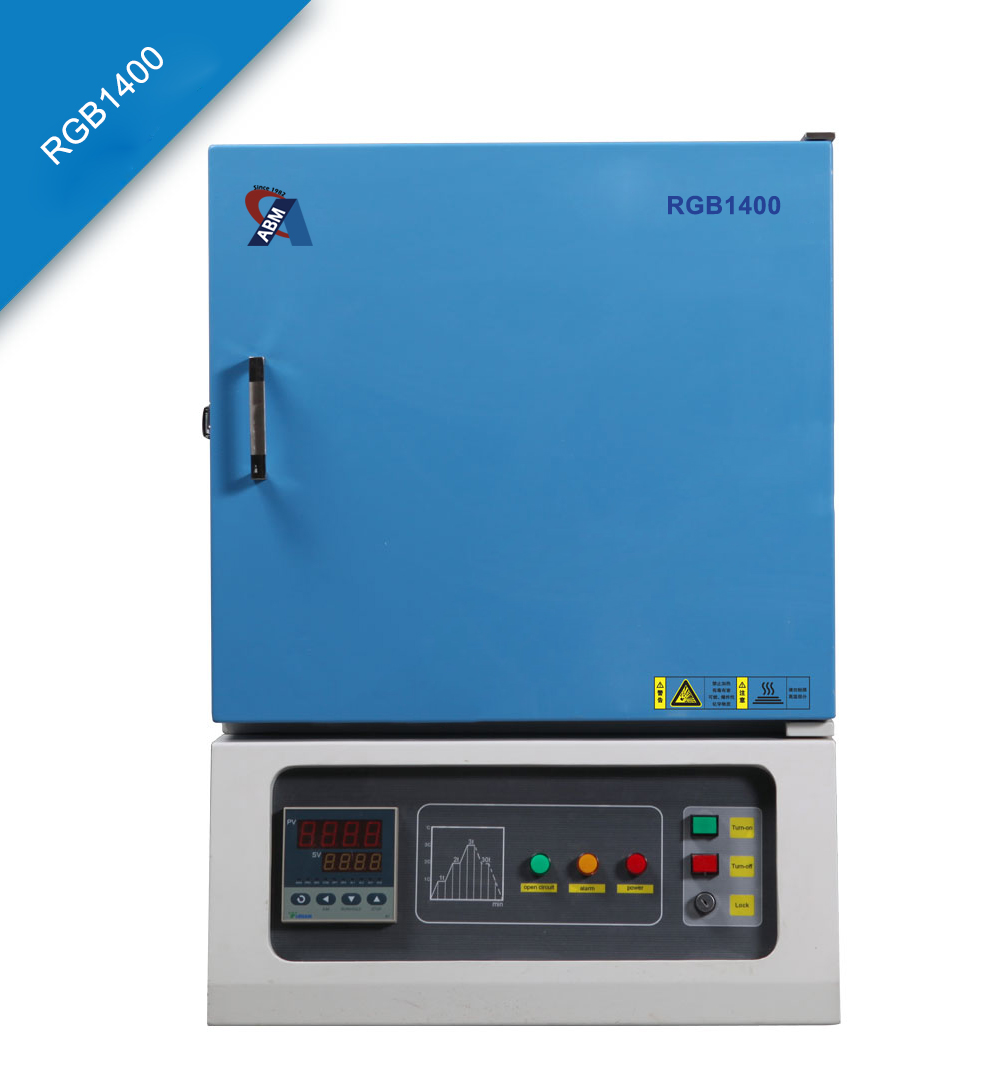

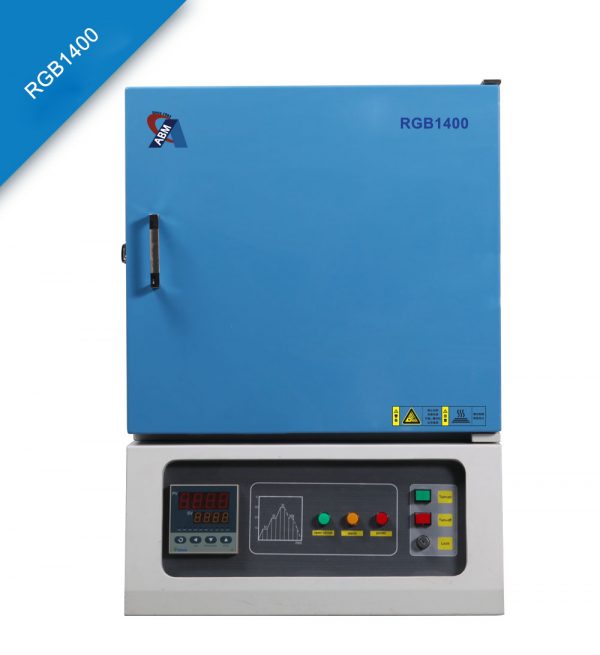

| RGB1400 | 300*200*200 | 6KW | silicon carbon
rod |
S type | 1300℃ | 1350℃ | 50 |
| 400*300*300 | 8KW | ||||||

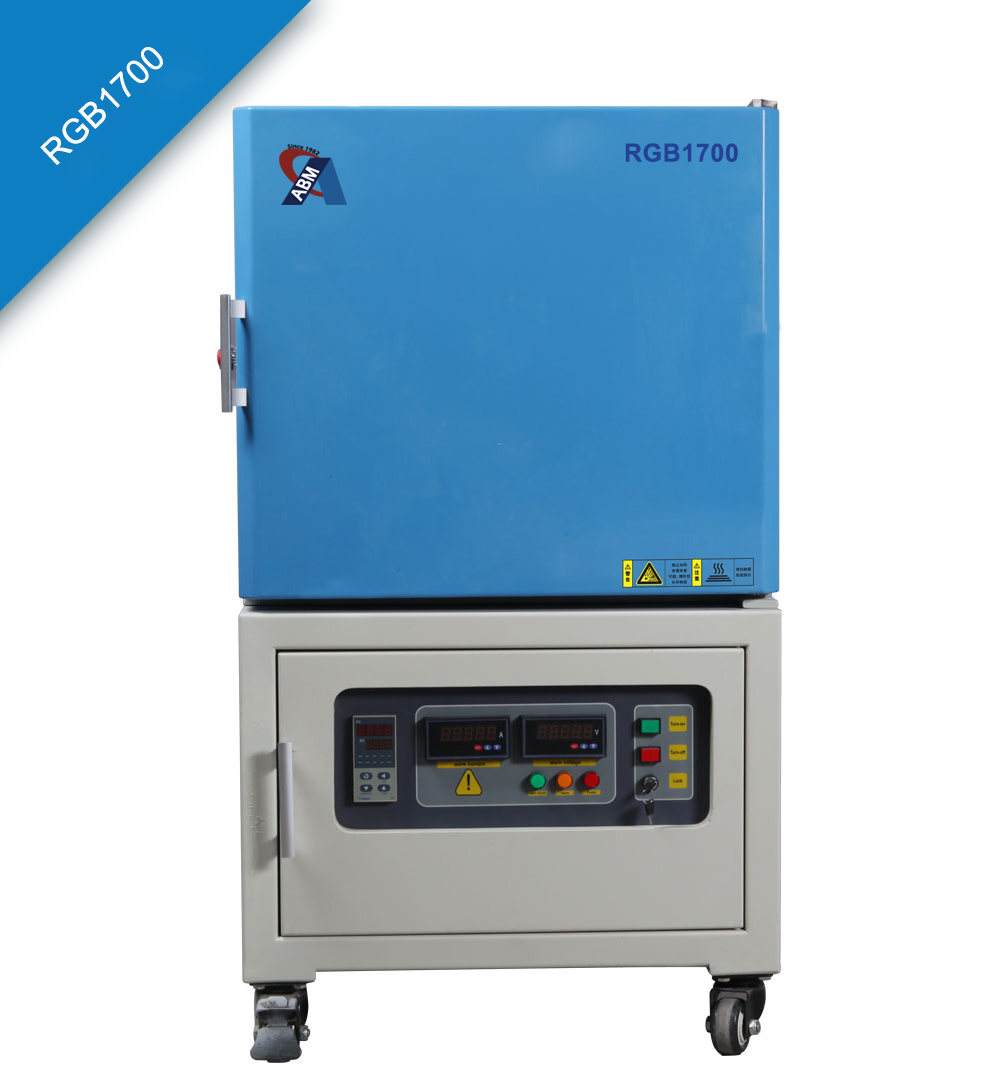

| RGB1700 | 300*200*200 | 6KW | silicon
molybdenum rod |
B type | 1600℃ | 1650℃ | |
| 400*300*300 | 14KW | ||||||
| RGB1800 | 400*300*300 | B type | 1700℃ | 1750℃ |
Standard Accessories:
Crucible tongs 1 pc, high temperature gloves 1 pc
Optional accessories:
Furnace frame; crucibles; tube, Oven gloves, Computer control software; Paperless recorder, etc.
