Description

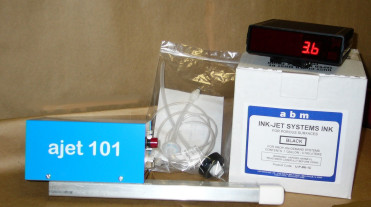

Ajet 101 DOD Ink Jet Printer

Ajet 101 DOD InkJet Printer developed by ABM Marking more than 20 years ago, serving the world-wide industrial customers. We are your one-stop shop for all of your business’s printing supply needs by offering printers, inks, Deluxe air compressor, cap assembly, and Filters.

The ajet 101 is a D.O.D. ink jet printer which will print one line of 7×5 or 5×5 matrix characters. 255 text messages can be prerecorded; dates, time, Julian dates, work shifts, and consecutive numbering can all be imbedded into the text messages. The print can be reversed and/or printed upside down allowing complete freedom of placement of the heads on the conveyor line in any position. The ajet101 printer has been developed for more than 20 years with very good performance with large number of customers worldwide.

Printer specifications:

• Electrical Requirements: 110-120 VAC, 60 Hz;
• Communications: Serial RS-232;
• Product Sensing: Built in;
• Can be externally triggered;
• Print Speed: Standard System – up to approx. 80 FPM. High Speed System – up to approx. 200 FPM;
• Print Direction: Right-to-Left or Left-to-Right. Upright or Inverted;
• Print Type: 5×5 or 7×5 Matrix. Standard or Bold (Double Dot);
• Time Coding: Built-In Real Time Clock, Shift Designator;
• Expiry Date: Built-in, Programmable;
• Counters: Incrementing or Decrementing, Separate Lot Counter;
• Printable Characters: 64 Character ASCII Set;
• Character Heights: 15mm, 20mm or 28mm. 20mm Standard;
• Compatible Inks: Standard Water Based for Porous Surfaces Alcohol Based for Non-Porous Surfaces MEK Based for Quick Dry Time Ink Consumption: Under controlled conditions: 1,800,000 char./gal. This may vary upon operating conditions – temperature, humidity, air pressure and dot size, etc.

ABM Marking makes various types of DOD inks for various substrates. Please click here for DOD Large Characters Ink.

Download Manual Here

Ajet101Manual
