Description

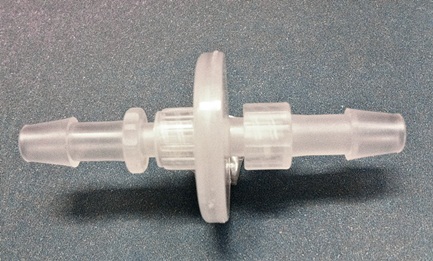

This is an ink line and/or air line filter of all polypropylene construction with a melt-blown polypropylene filter element rated at 99% retention of particles greater than 20 micron. It may be used with any type of ink, including those that are based on MEK solvent.
The filter is small in size, 25 mm barely larger than a 25 cent coin, and has quick disconnect luer lock fittings. Since luer couplings are available with various size barb fittings, the filters will fit any standard tubing. Using fittings with different size barbs on the male and female side allows a neat method of changing from one tubing size and adding filtration in one operation.
Two of these filters (one inside, one outside) are used with our AJET 101 ink jet printer.
RECOMMENDED USES: Order the filter with 1/16″ luer fittings to add filtration to systems like the LOVESHAW LITTLE DAVID that use our MICROJET ADAPTOR KIT. To add an extra measure of filtration to larger systems using 5 gallon pails order a filter with 1/8″ fittings for each line.
